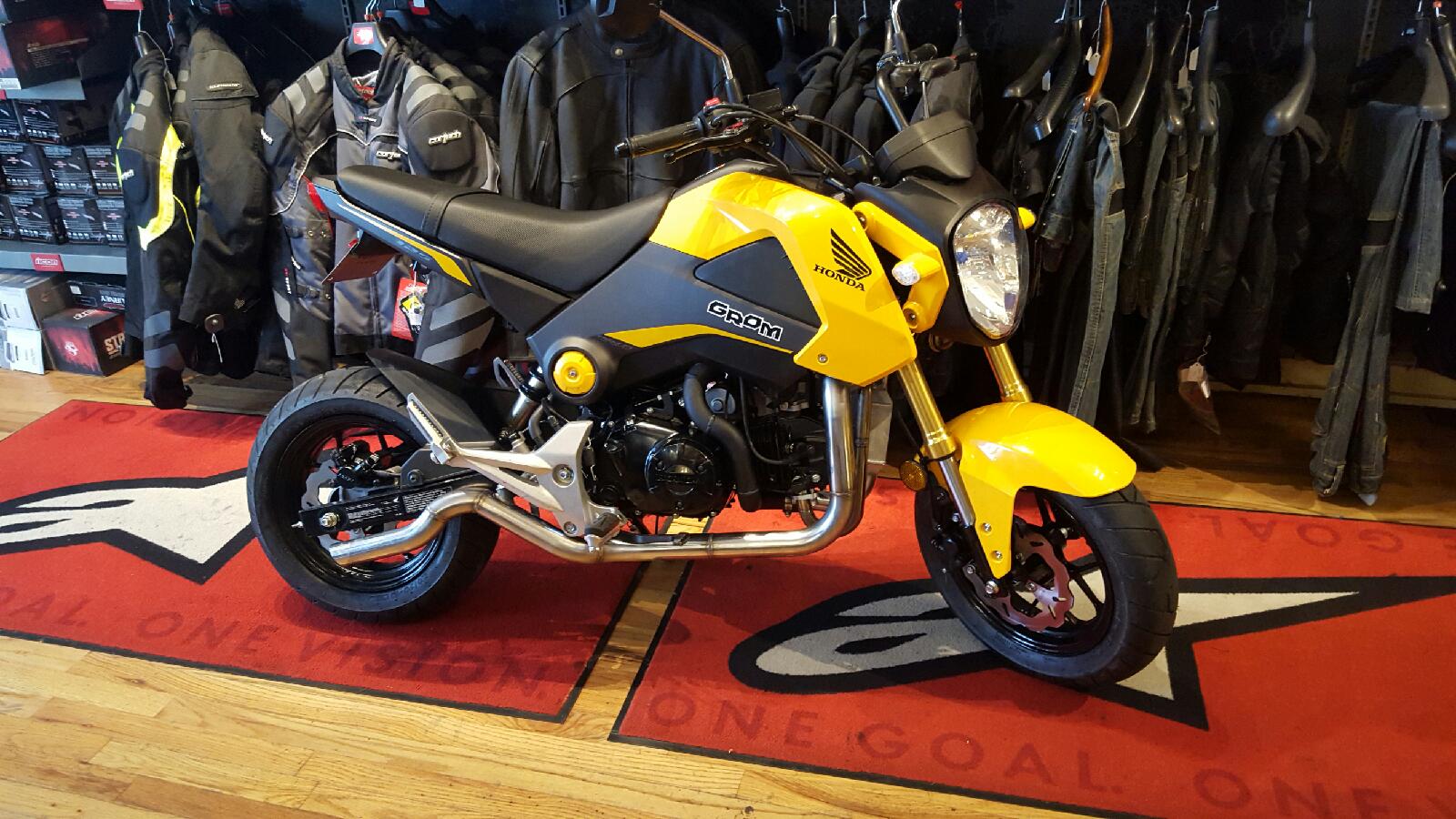

2015 TURBO BIG BORE HONDA GROM

CYCLE THERAPY INTRODUCES ONE OF THE FIRST FEW TURBO , BIG BORE 200CC GROMS IN NYC

WE HAVE PUT ALOT OF TIME AND WORK INTO THIS BIKE AND THE HARD WORK SHOWS !

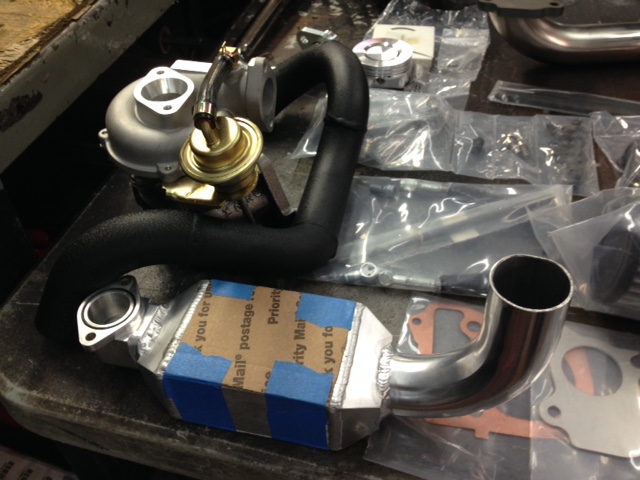

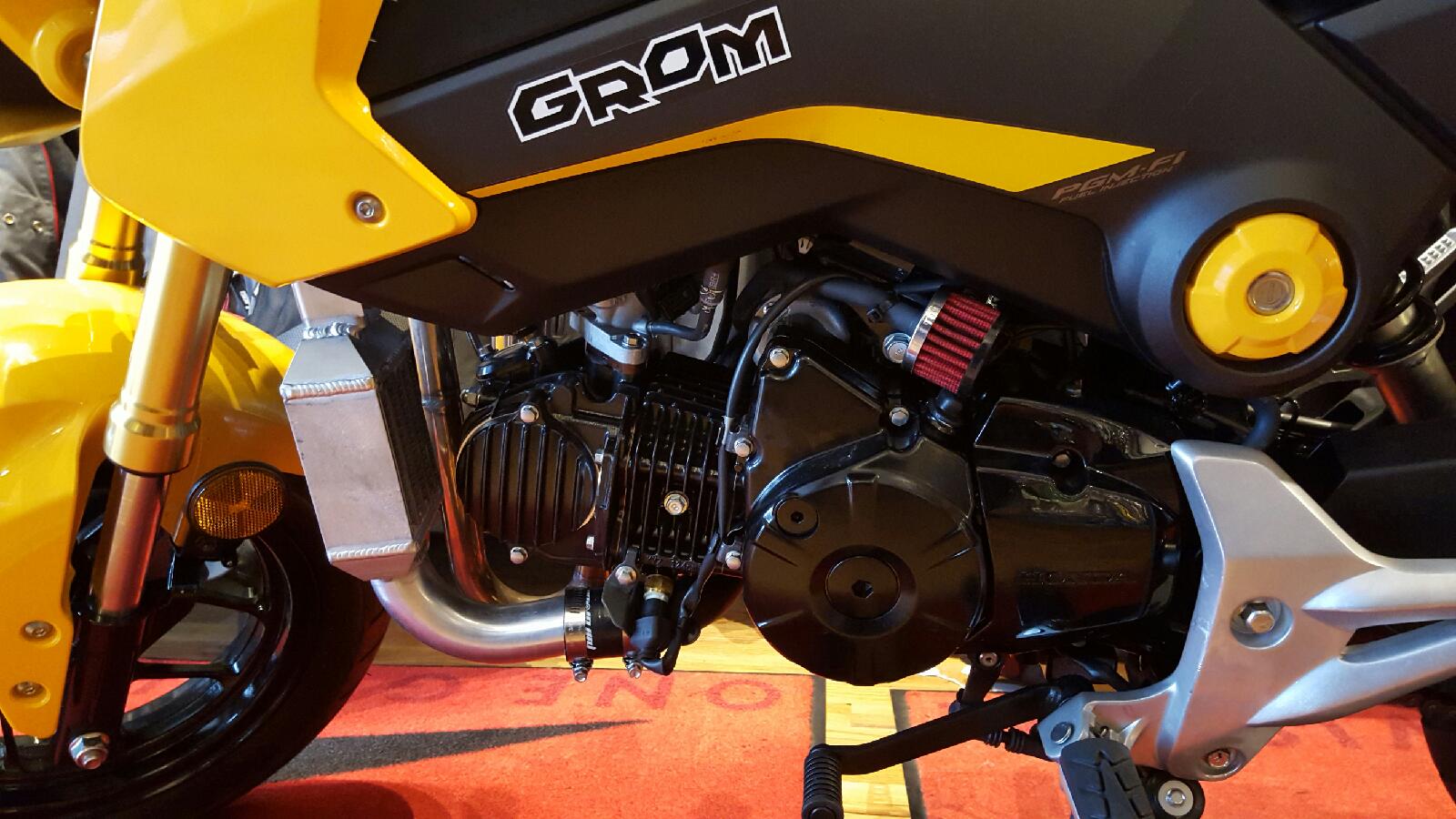

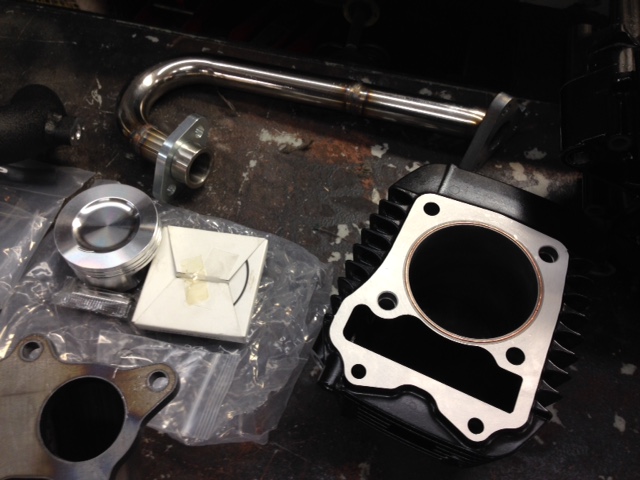

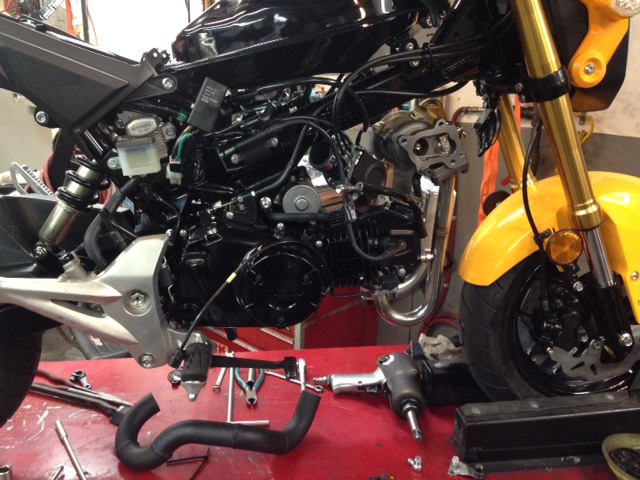

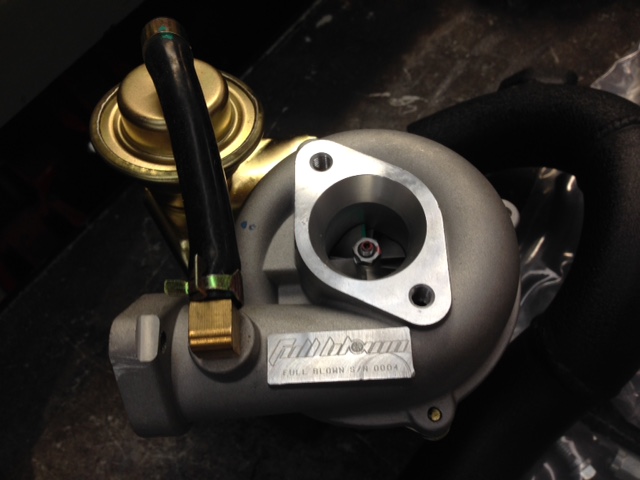

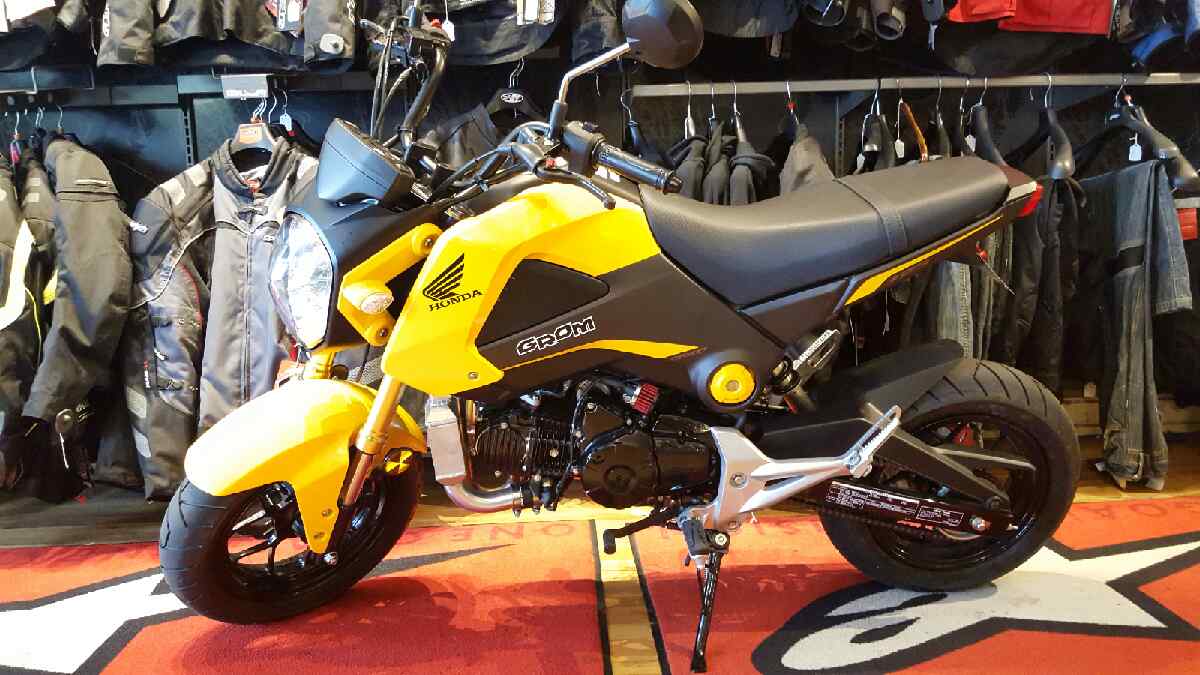

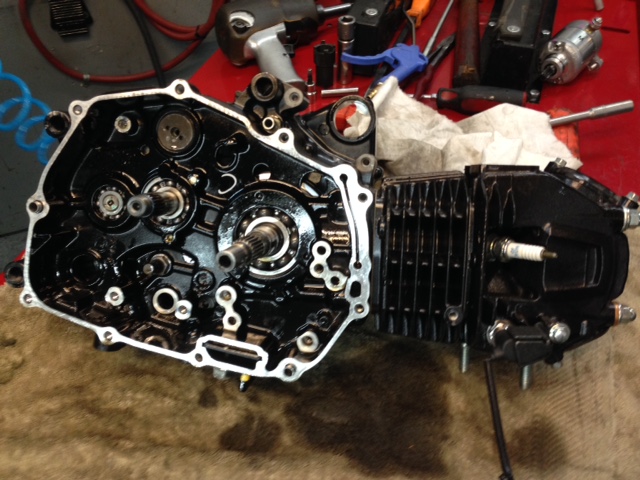

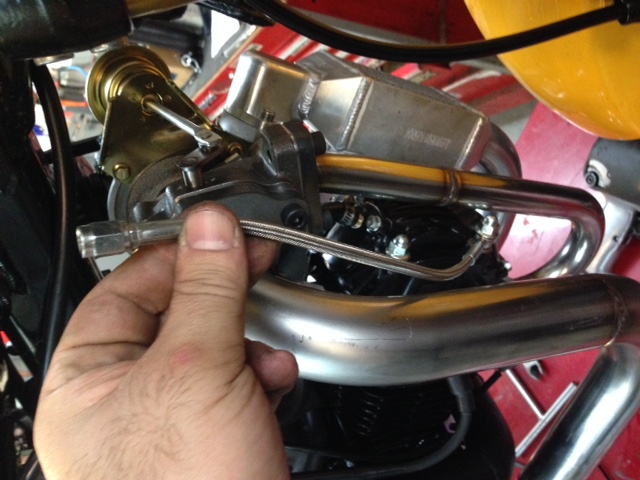

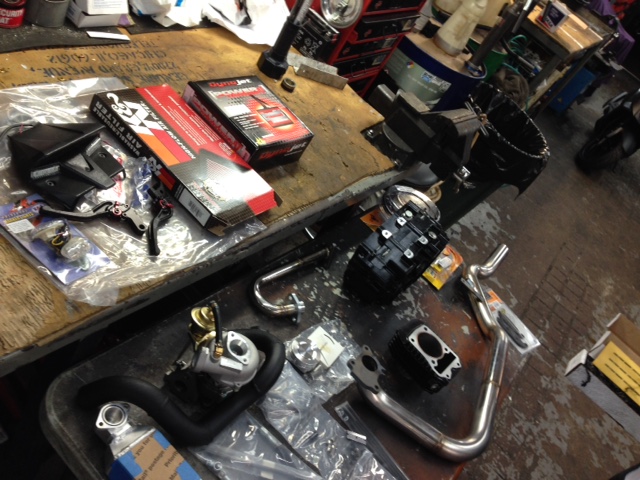

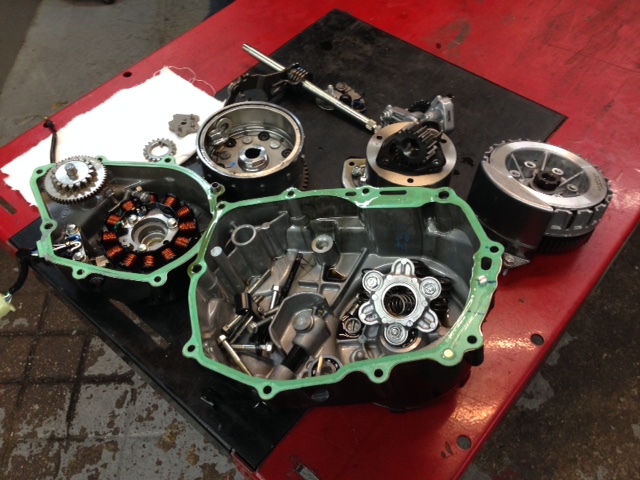

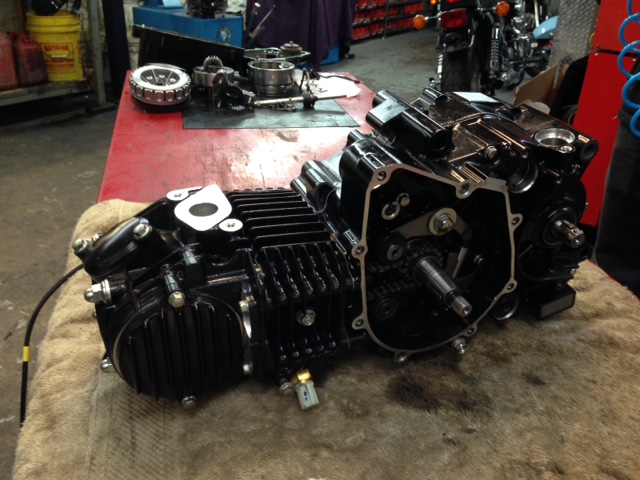

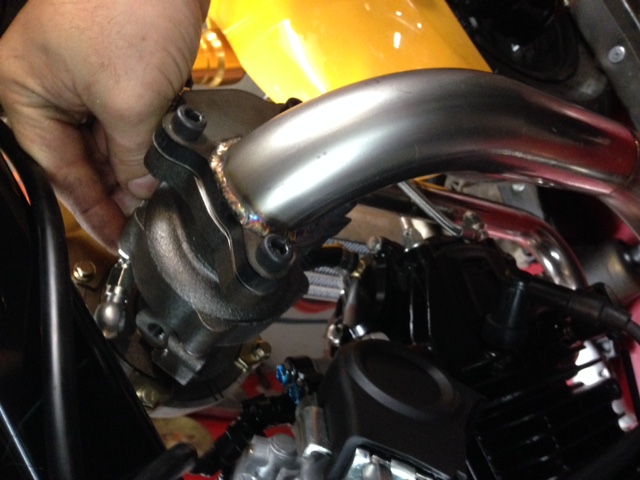

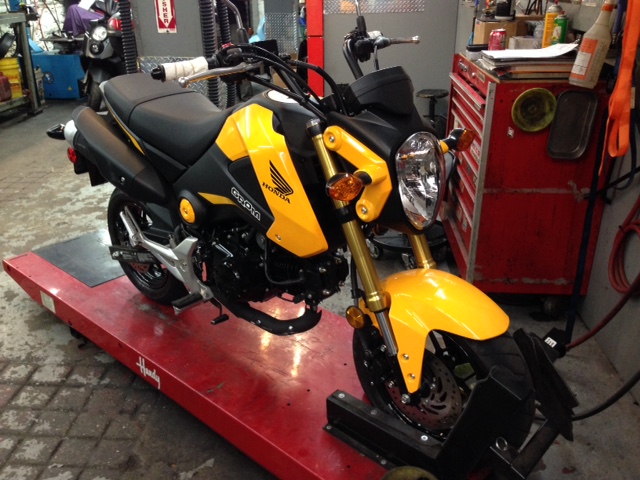

FIRST WE STARTED OFF WITH A BONE STOCK 2015 HONDA GROM , THEN WE DROPPED OUT THE ENTIRE ENGINE AND REPLACED THE CASES WITH LARGER BORED OUT CASES FROM FULL BLOWN MOTOR SPORTS, WE THEN REPLACED THE HEAD GASKETS WITH A CUSTOM CUT GASKET TO ACCOMMODATE THE NEW LARGER 200CC SLEEVE AND PISTON. ALL THE STUDS WERE THEN REPLACED WITH HEAVY DUTY ONES TO WITHSTAND THE STRONGER VIBRATIONS THAT THE BIKE WILL BE PUTTING OUT. WE WERE NOW READY TO INSTALL THE TURBO ! THE TURBO KIT INCLUDED THE TURBO, FBM UP PIPE, FBM DOWN PIPE, FBM INTERCOOLER , FBM INTAKE ADAPTER , FBM TURBO SUPPORT BRACKET . NOW THAT WE HAVE ALL THIS POWER THE BIKE NEEDED TO UNDERSTAND HOW TO USE IT ! SO WE INSTALLED A DYNO JET RESEARCH POWER COMMANDER 5 WITH A CUSTOM MAP ON OUR IN HOUSE DYNO MACHINE. WE THEN INSTALLED A K&N RACE SPEC AIR FILTER SO THE BIKE CAN BREATH MORE FREELY. WE ALSO INSTALLED A K&N CRANK CASE BREATHER TO HELP ALLOW EXCESS PRESSURE ESCAPE FROM THE CRANK CASE. ON TOP OF THE ENGINE WORK WE ALSO INSTALLED SUPER BRIGHT COOLING HIDS, FENDER ELIMINATOR, CUSTOM MADE FBM EXHAUST (TUNED), ASV SHORTY LEVERS (CLUTCH AND BRAKE) AND SO MUCH MORE TO LIST.
